ROBOTUFT

All settings of Robot:

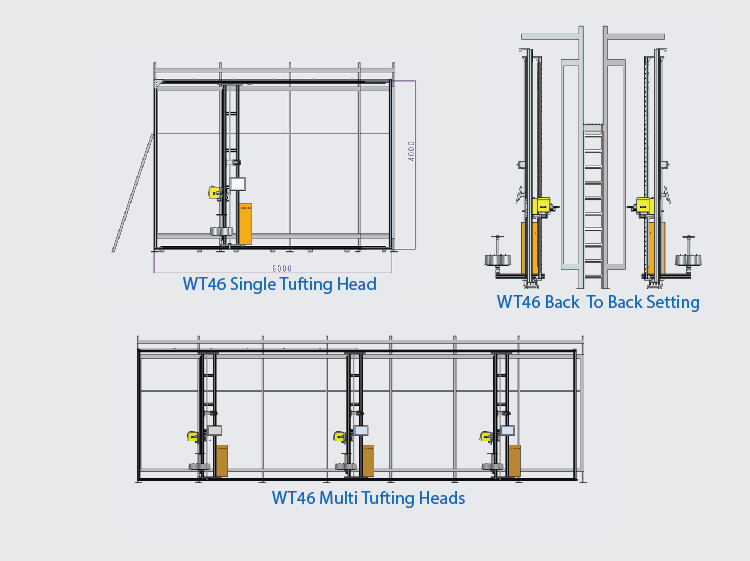

--For Single Head--
Axis：8 axis
Voltage：220V 50hz
Power：4.0kw(Single)
Tufting Area：4500mm(Length)X3100mm(Height)
Machine Size：6000(L)X2500(W)X4200(H)mm

--For Multi-tufting Heads--
Axis：8 axis
Voltage：220V 50hz
Power:4.0kw*N N= sets of robots
Tufting Area：N*6000-1000mm(Length)X3100mm(Height)；N= sets of robots
Machine Size: 6000(L)X2500(W)X4000(H)mm Length=6000*N N= sets of robots



Robot specifications:


Pile height：Cut plie:6-15mm Loop pile:3-15mm
Tufting density：
Adjustable range of needle distance:1-10mm Min. range of spacing:2mm
Yarn material：Acrylic fiber, wool,bamboo fiber, silk yarn, cotton etc.
Productivity:
No yarn color limit; Max speed of tufting:1800 stitch/min;
Simple design(geometric with few colors): 3m²/h
Complicated design(small area with many colors):0.8-1.5m²/h

Robot Improvement:

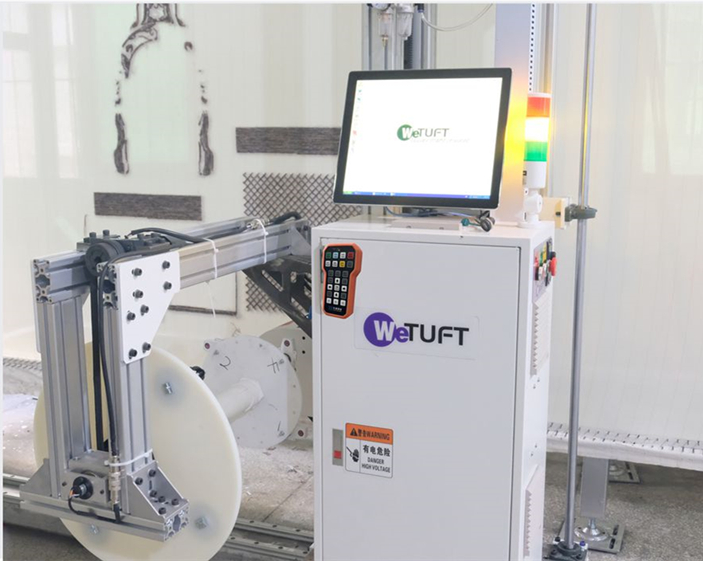

1. Electrical cabinet and control panel with HDMI (Human Machine Interface) software in  English, Chinese;
2. It has 6 yarn sensors and the robot will stop immediately once the yarn breaks;
3. Flexibly operating interface, and esay learning;
4. Robot running base on Windows 10 system;
5. Wireless Remote Assistance: HMI will keep updating once we get some upgardes.



Robotuft Performance:

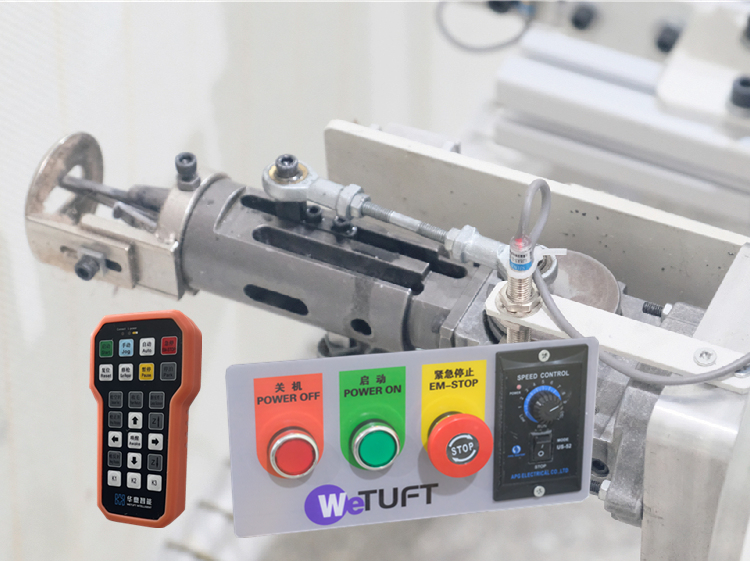

1. Wireless Remote Controller, improving the machine operator’s efficiency, HMI can be operated from different spots which also  can be controlled by 'Machine control' page;
2. Yarn mixing function for gradient color;
3. Yarn mixing speed can be adjusted;
4. Different color control buttons for easy operating;
5. Traditional Tufting Head:
Easy for operators and hand tufting workers;
Easy for tufting gun repairing and adjusting;
Fortified tufting head, More durable
